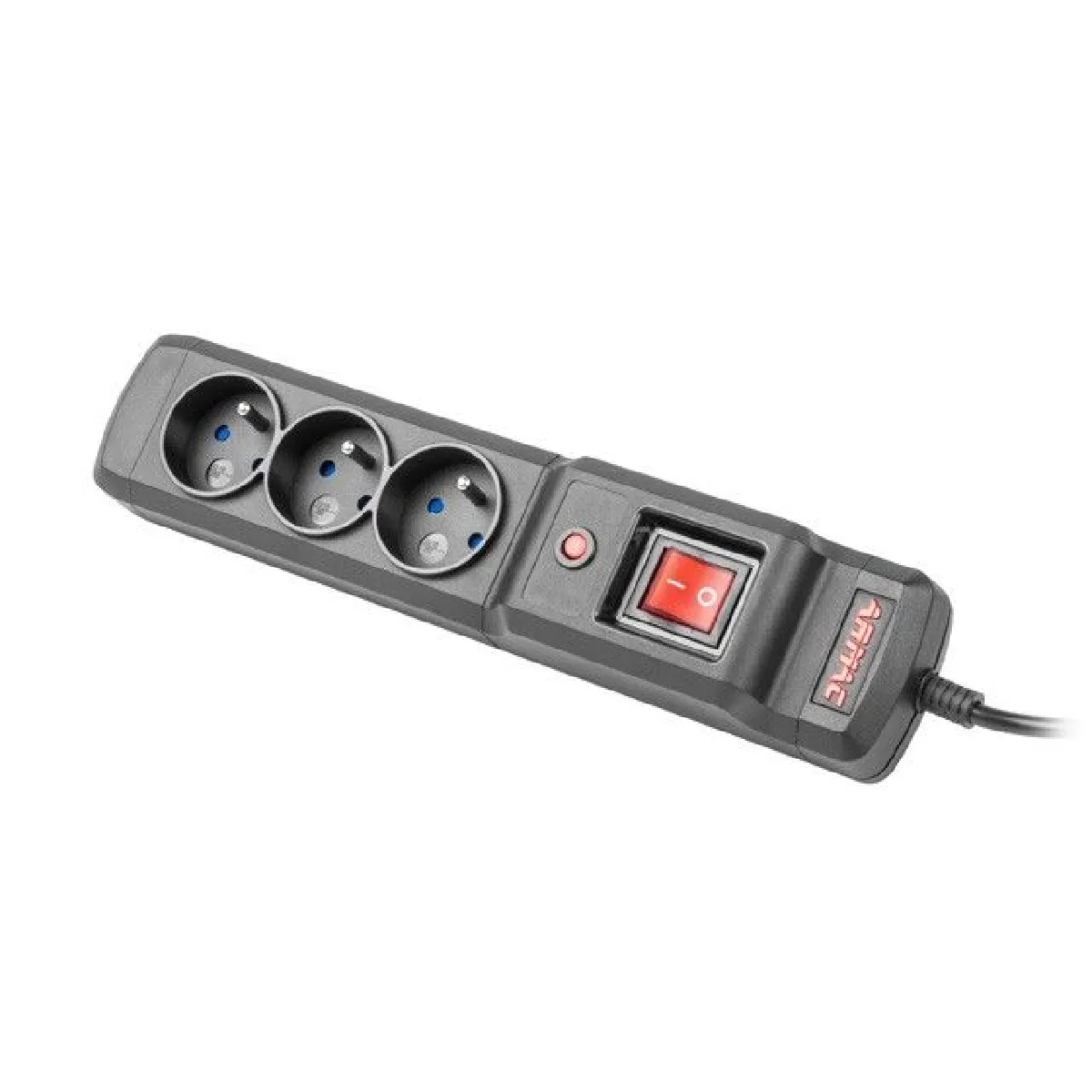

Surge ARMAC M3 1.5m black (3 slots)
Multi M3 is the basic model of the latest series of safety devices the company of pharmacy. Unique and innovative solutions used in multi-family, allow you to create products with different configurations, models and colors. A special method of mounting modules, which produce products, has been registered in the Polish Patent Office. Multi M 3 has three grounded outlet, auto, slow-blow fuse and the possibility of termination cord plug IEC C14. Multi M3 may occur with shutters to protect against electric shock.
Main features:
-3 Grounded outlet
- Circuit Breaker
- The surge
285 x 60 x 50 mm
- Rated voltage: 230V ~ Un
- Frequency: 50 Hz
- In Rated current load: 10A (2300W)
- Energy sorption (total): 155J
- Leakage current: 0.5mA
- Response time: <25ns
- The maximum discharge current Imax: 6kA - 8/20 microseconds
- The continuous operating voltages Uc: 250V ~ 50Hz
- Protection level Up: 1,2kV
- Test voltage Uoc: 4kV
- Protected lines: L-N
- Fuses: circuit breaker with slow tripping characteristics 10A / 250V
- The system of protection against safety pins socket connected to the protective conductor
- Number of slots: 3
- Plug: PN-E-93203 type 2P + earth
- Switch: illuminated, bipolar
- Housing: plastic, self-extinguishing
- Working conditions: inside
